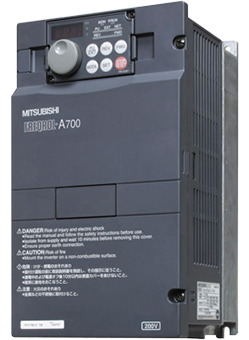

Wide Speed Range: 200:1 operating range is possible - even when the drive is used ‘open loop’

PLC Feature: A700 programmability provides true intelligence inside the drive - a simple solution for complex applications

Easy Gain Tuning: Compensates automatically for changes in load inertia to ensure smooth and consistent operation

Fast Response: Up to 300 radians / second speed response means lightning fast reaction to sudden load changes

USB Port: Allows simple connection to the new FR-Configurator Software for quick and easy commissioning

more info

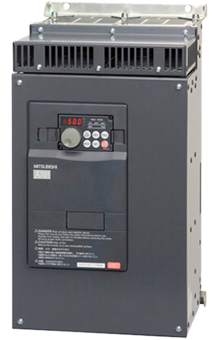

Vector VFD with built-in Line Regeneration.

1.Brochure
2. Manual
3.Wiring
4.Dimensions

Ideal for applications with continuous overhauling or large inertia loads

Capacity up to 75HP for 240V and 480V applications

Braking Torque

100% continuous

150% for up to 60 sec.

Vector mode with encoder allows Speed, Torque and Position control

Real Sensorless mode allows Speed and Torque control without encoder

Starting torque of 150% at 0.3Hz

more info

1.Brochure
2.Manual
3.Wiring
4.Dimensions

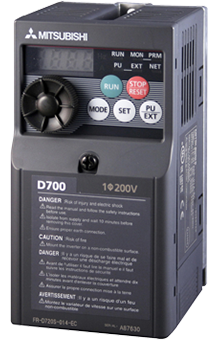

Increased capacity up to 10HP in both 230V and 460V Safety stop compliant RoHS compliant

Includes brake chopper circuit as standard Modbus RTU included as standard via the RJ45 port

Password function General Purpose Flux Vector Control (same as E500)

Optimum excitation control for increased energy savings when motor is not under load

Frequency search function to catch a spinning load Same mounting holes and dimensions as S500

Supports remote I/O function via network

more info

1.Brochure
2.Manual
3.Wiring
4.Dimensions

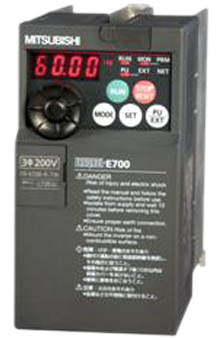

Available in 115V, 240V and 480V up to 20HP

Advanced Magnetic Flux Vector Control for improved starting torque and smooth low speed motor operation

Auto-tuning allows improved performance using virtually any manufacturer’s motor

All capacities include built-in brake chopper

Safety Stop function meets EN954-1 Category 3 and IEC60204-1 Stop Category 0

USB communications allow fast commissioning and troubleshooting

more info

1.Brochure
2.Manual
3.Wiring
4.Dimensions

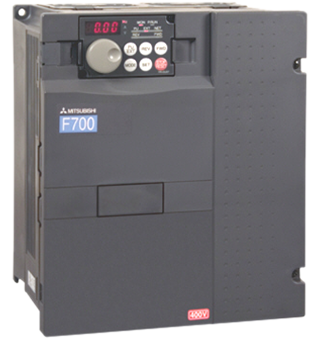

NEMA 1 UL Type 1 Enclosure Designs: Drive can be mounted as a stand-alone unit.

Built-in BACnet MS/TP: No option card required. Standard PLC programs with GXDeveloper: Control solutions for sequencing pumps and relay logic for damper end switch just to name a few.

Dual I/O Option: Useful when utilizing the PLC for advanced functions.

Single Phase Input: UL/cUL listed for use with single phase input supply.
